CNC Saw Blades Grinder NBS 82

Band Saw Blades Grinders

CNC Saw Blades Grinder NBS 82

The next generation of CNC Saw Blades Grinder, the NBS 82 brings the joy of sharpening process – higher quality sharpening results, operator safety and remote access support via internet – backup programs; software updates; via PC or smart phone access to machine display; remote service support; integration into the production process and gathering technological data, etc.

The CNC Saw Blades Grinder NBS 82 is ideal for the sharpening of stellite, CV, bimetal and carbide-tipped saw blades up to 100 mm wide. It operates with ceramic, CBN or diamond grinding wheels using water cooling. Driven diamond dressing wheel with automatic cycle can be installed optionally in order to keep the shape of ceramic stone clean and consistent. Thanks to this, the stable and consistent tooth shape of the sharpened blade is ensured.


The grinding cycle is controlled via CNC servo motors; with the result that the saw tooth dynamics remain consistent. The CNC Saw Blades Grinder NBS 82 incorporates a coolant reservoir and spray system which helps to keep the saw blades cool during grinding.

The CNC Saw Blades Grinder NBS 82 has an extremely space-saving design. The coolant tank is integrated in the machine stand and is easily accessible from the front. The sturdy band saw roller cross is also readily accessible and easy to adjust, thus ensuring user-friendly loading of the band saw. The saw blade holder can be conveniently adjusted to the relevant band saw width via a lever.

Advantages at a glance:

  • Simple operation
  • Short setup times
  • Heavy duty machine design
  • Low noise and dirt generation
  • Good cost / performance ratio

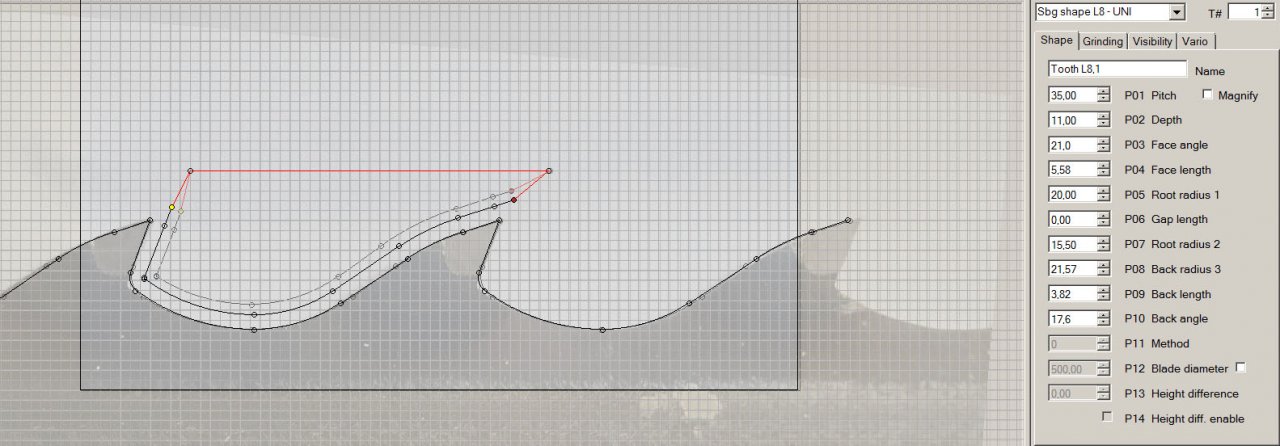

  • Opened programming of tooth form including vario profiles
  • Coolant tank integrated in machine stand with good access
  • A variety of tooth pitches can be ground with the same grinding wheel
  • A better finish on the wood is achieved because each tooth is ground more accurately
  • More saw blade re-grinds are achieved on the CNC grinder because of its accuracy and consistency. The re-grinds will be consistent from one machine operator to another
  • Electronic Hand wheel for even faster and easier adjusting and starting sharpening cycle
  • Increased productivity of sharpening due to new patented feeding system
  • Machine mechanics behind the working area and separated from the wet sharpening process
  • Even smoother sharpening results due to integrated spindle with frequency inverter and 250 mm grinding stone
  • Optionally equipped by Driven diamond dressing wheel with automatic cycle in order to achieve stable and constant tooth profiles

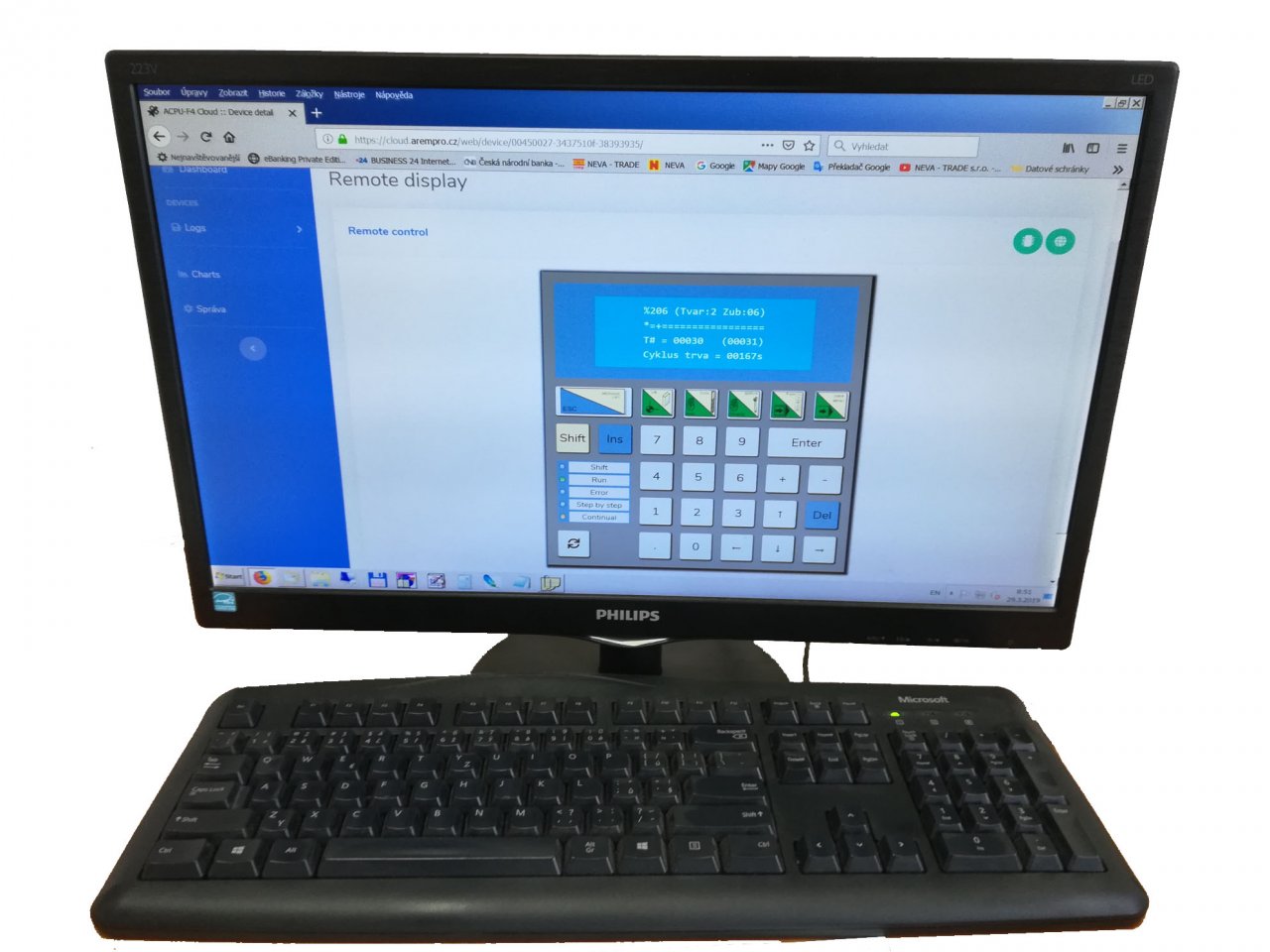

  • Remote access readiness - via RJ45 connection to the LAN and internet network
CNC Saw Blades Grinder NBS 82:
(sharpening thin cutting frame saw blades)
CNC Saw Blades Grinder NBS 82:
(sharpening band saw blades with vario teeth)
