Thin Cutting Band Saw RE-MAX 500 CNC

Finally, a heavy-duty horizontal Thin Cutting Band Saw for all your re-sawing applications, including flooring, windows, doors, furniture and musical instruments.

Unlike other re-saws, the Thin Cutting Band Saw RE-MAX 500 CNC is built from solid cast iron, and incorporates a durable and effective guiding system and thin-kerf saw blades under high tension. The machine produces a smooth, gluable surface with superior tolerances.

The Thin Cutting Band Saw RE-MAX 500’s modular construction gives your company room to grow. A single, stand-alone unit can be purchased initially; additional units can then be added in line as production requirements demand.

INQUIRY FORM

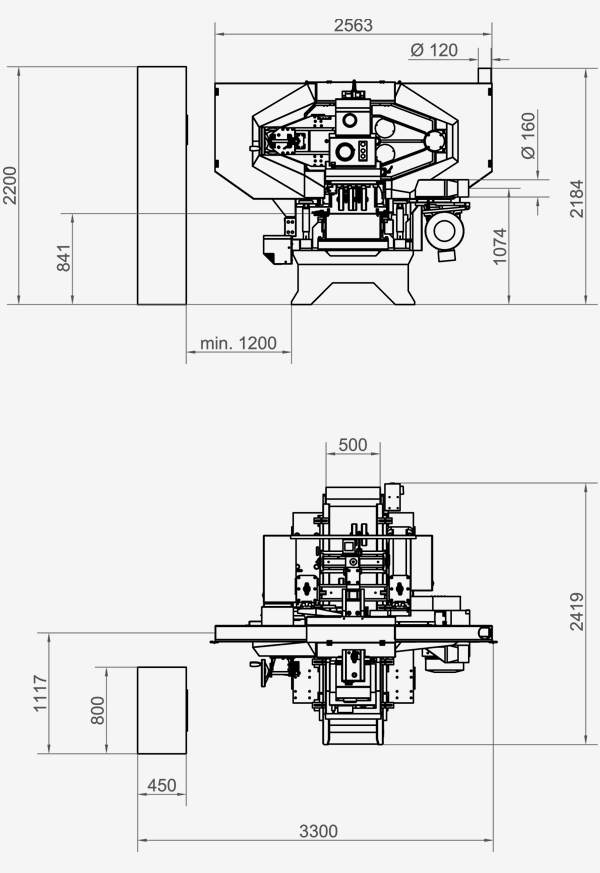

DESCRIPTION DIMENSIONS ACCESSORIES DOCUMENTATION

Put these advantages to work in your operation:

  • Steel Table at the cutting spot for the highest precision
  • High precision lamellas with gluable surface in tolerance ± 0.15 mm, depending on lamellas width

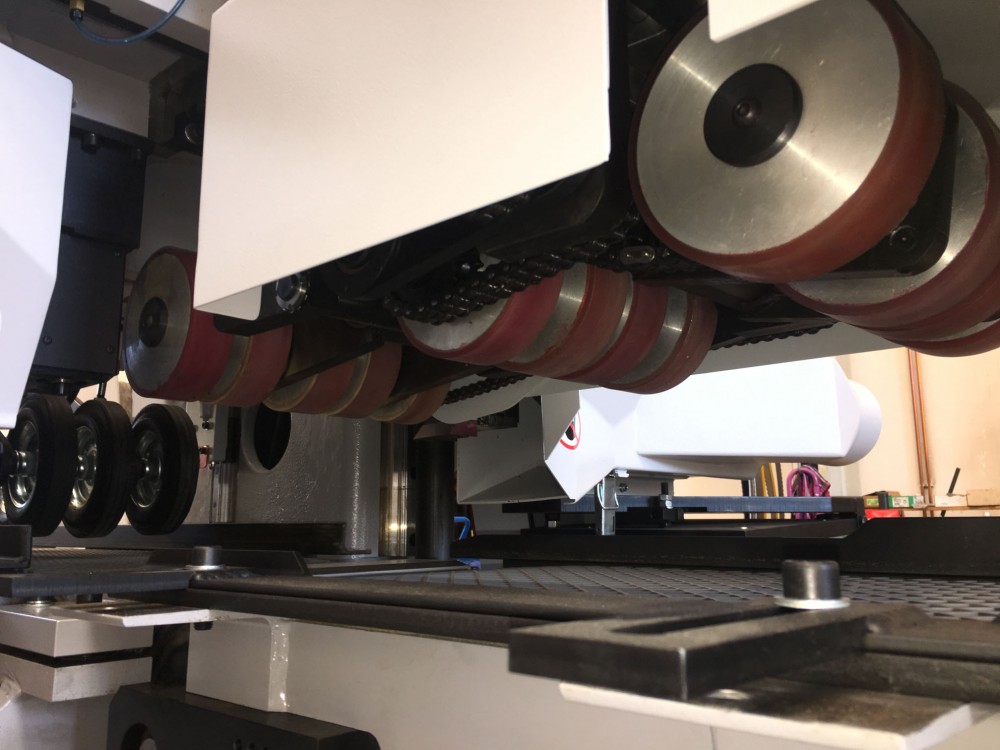

  • Divided Feed Conveyor with Top Driven Infeed Pressure Unit
  • Bearings on both sides of the Main Wheel Shafts for maximum cutting stability
  • Saw Monitoring during machine operation
  • Heavy-duty, cast-iron construction-built for longevity and superior tolerances
  • CNC touch-screen control panel for easy height adjustment
  • Thin-kerf, high-tension blades to minimize your waste
  • Handles material up to 500 mm wide, 150 mm thick
  • Adjustable cutting speed and feed speed as well
  • Produces smooth, gluable surface
  • Variable feed up to 60 m/min.
Thin Cutting Band Saw RE-MAX 500 CNC
500 mm spruce panel cutting:
Thin Cutting Band Saw RE-MAX 500 CNC
330 mm oak, beech and walnut panel cutting:

Thin Cutting Band Saw RE-MAX 500 CNC
cutting 400 mm wide teak:

Thin Cutting Band Saw RE-MAX 500 CNC
high speed cutting:

Thin Cutting Band Saw RE-MAX 500 CNC
fresh/green oak cutting:

Thin Cutting Band Saw RE-MAX 500 CNC

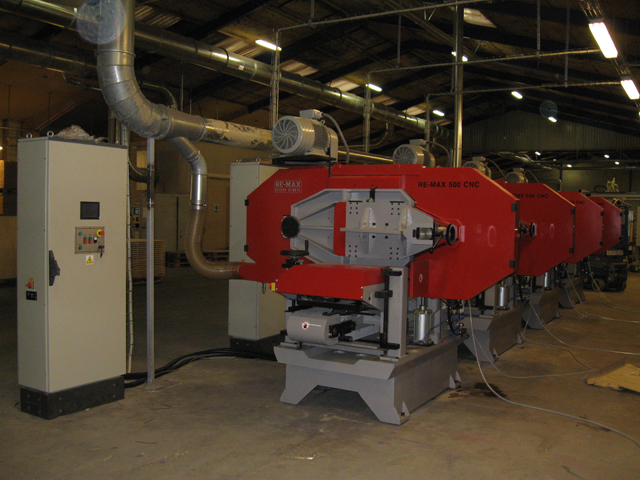

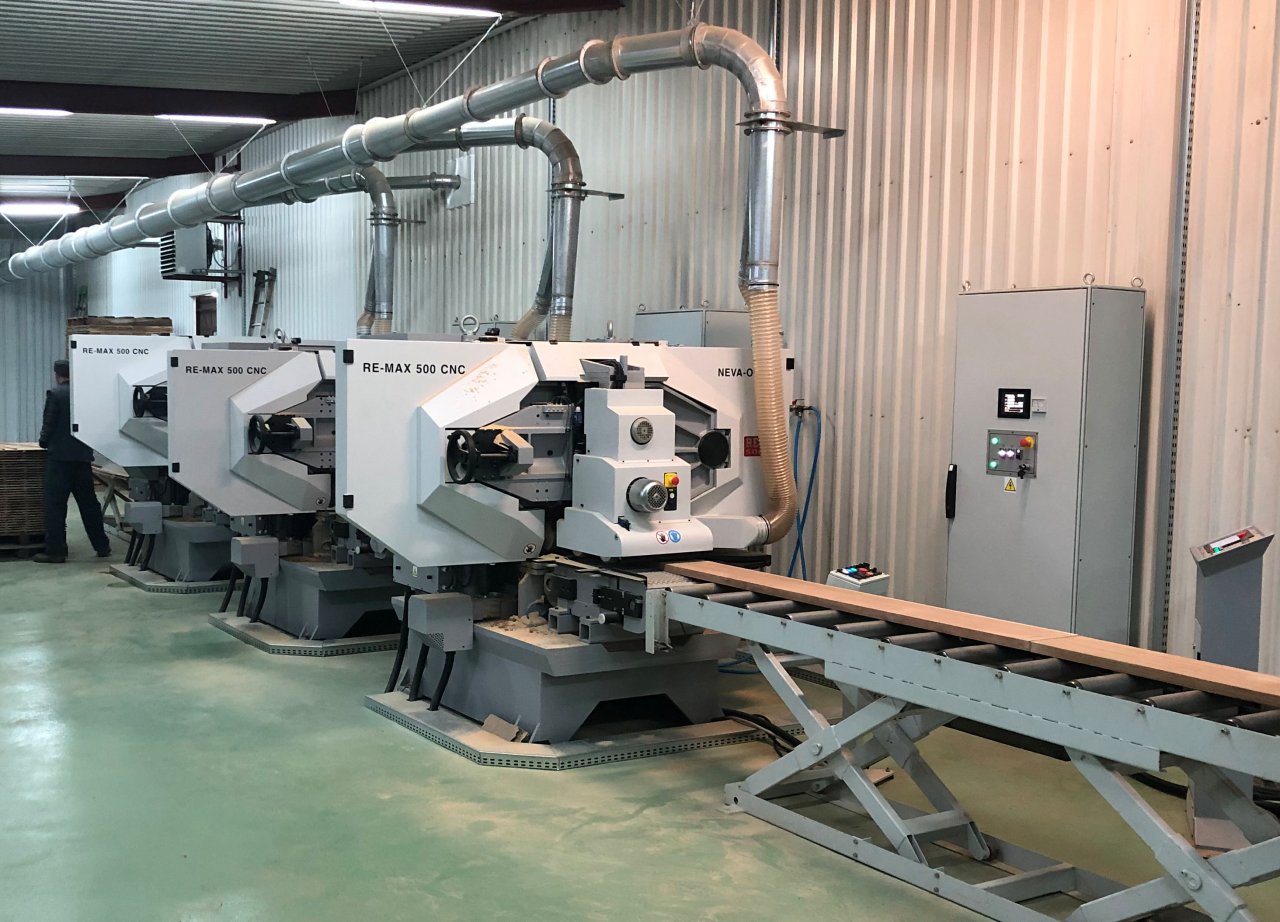

production line of 3 machines:
